Silicon Carbide

Silicon carbide (SiC) is a super-hard, high-performance material known for its excellent thermal, mechanical, and electrical properties. It’s especially valuable in extreme environments where other materials would fail. Bidirectional Reflectance Distribution Function (BRDF) and infrared (IR) reflectance measurements of a silicon carbide sample were conducted by the SOC measurements lab.

Silicon Carbide BRDF

Silicon Carbide BRDF 20 degree angle of incidence
20 Degree Angle of Incidence

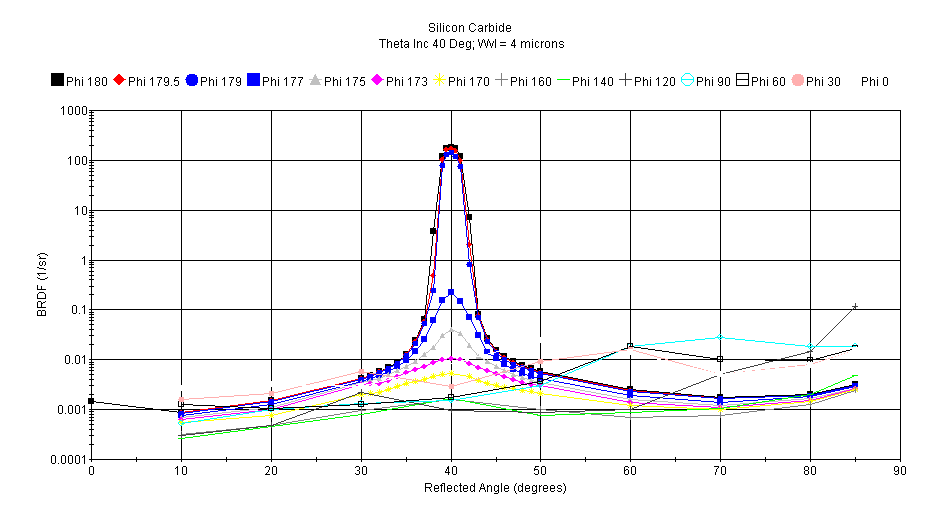

Silicon Carbide BRDF 40 degree angle of incidence
40 Degree Angle of Incidence

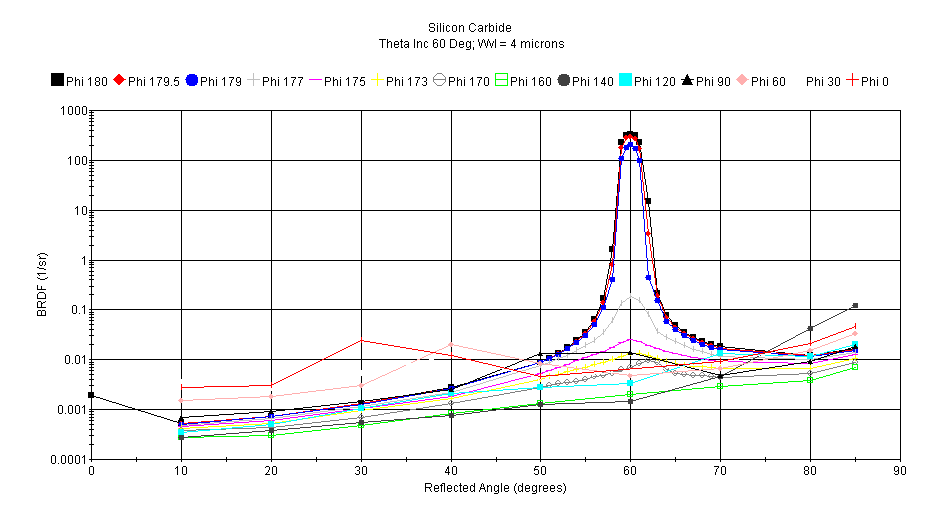

Silicon Carbide BRDF 60 degree angle of incidence
60 Degree Angle of Incidence

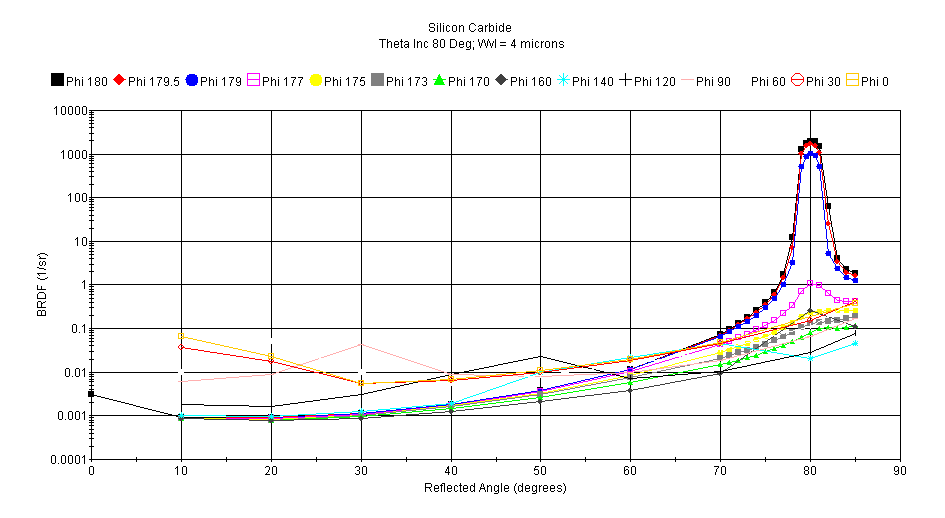

Silicon Carbide BRDF 80 degree angle of incidence
80 Degree Angle of Incidence

Silicon Carbide IR Reflectance

Silicon Carbide IR Reflectance
